Sewing , Garment & Embroidery Sewing machines.

Sewing , Garment & Embroidery Sewing machines

Sewing , Garment & Embroidery Sewing machines.

Details
October 10, 2024

Date :

Jonathan Michael

Client :

Sewing Machines - Industrial - TYPICAL

Category :

GC20606D

Model:

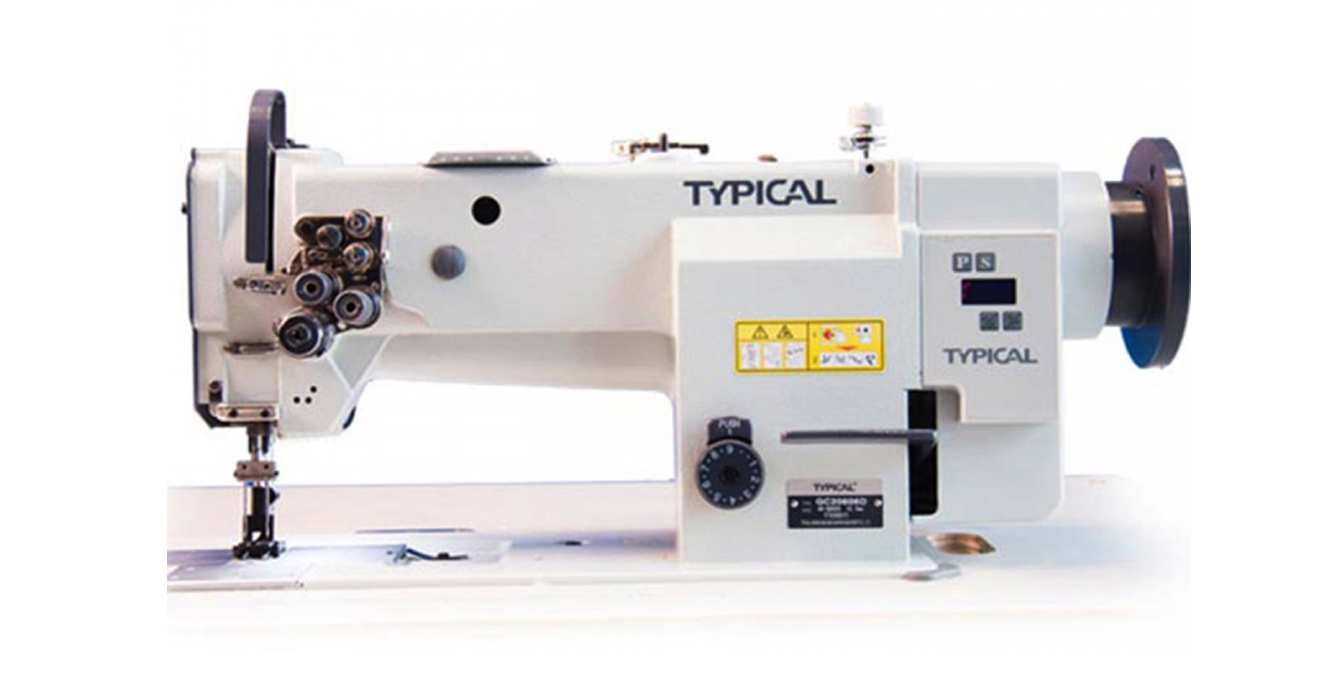

Sewing heavy upholstery and leather fabrics are the tasks of machines with compound feed. This 2 needle TYPICAL lockstitch machine is ideally suited for working with this type of fabric. The energy-saving machine motor allows for large savings compared to the clutch motor. The new generation engine works quieter, improving the comfort of the sewing person on the lockstitch. The lockstitch is also equipped with a safety clutch that disconnects the drive when overloaded. Thanks to this, individual parts are protected from damage. Among the advantages of a lockstitch machine, it is also worth mentioning an automatic lubrication system, an enlarged hook and a higher needle bar stroke of up to 36mm in this model. BIGGER HOOK Among the advantages of this lockstitch, you can replace the enlarged hook, which allows you to use the bobbin 30% larger than in standard size hooks. By default, threads with a thickness of # 20 are designed for this model, however it is possible to adapt the machine to other thicknesses (eg # 15 or # 10). COMPOUND FEED Compound feed of the lockstitch combined with a large needle bar stroke (36mm) facilitates work with heavy materials, such as furniture and car upholstery, leather and other technical fabrics. AUTOMATIC LUBRICATION SYSTEM The lockstitch machine has an automatic lubrication system that is more convenient and economical compared to manual lubrication.

Stitch length : 0.7-2mm

Features : HIGH-SPEED

Place of origin : China

Garment Shops, Manufacturing Plant, Machinery Repair Shops

Warranty : 1 year

Machinery Test Report : Not Available

Video outgoing-inspection : Not Available

Warranty of core components : Not Available

Product : overlock sewing machine

Key Selling Points : Easy to Operate

Mechanical configuration : Flat-Bed

Condition : New

Stitch formation : Overlock Stitch

Power : 2P

Overall Dimensions : 47cm*36cm*52cm

Core Components : Engine

Weight (kg) :  45kg machine carton /23kgs table

Voltage : 220v50hz

Applicable Industries : 4 thread
